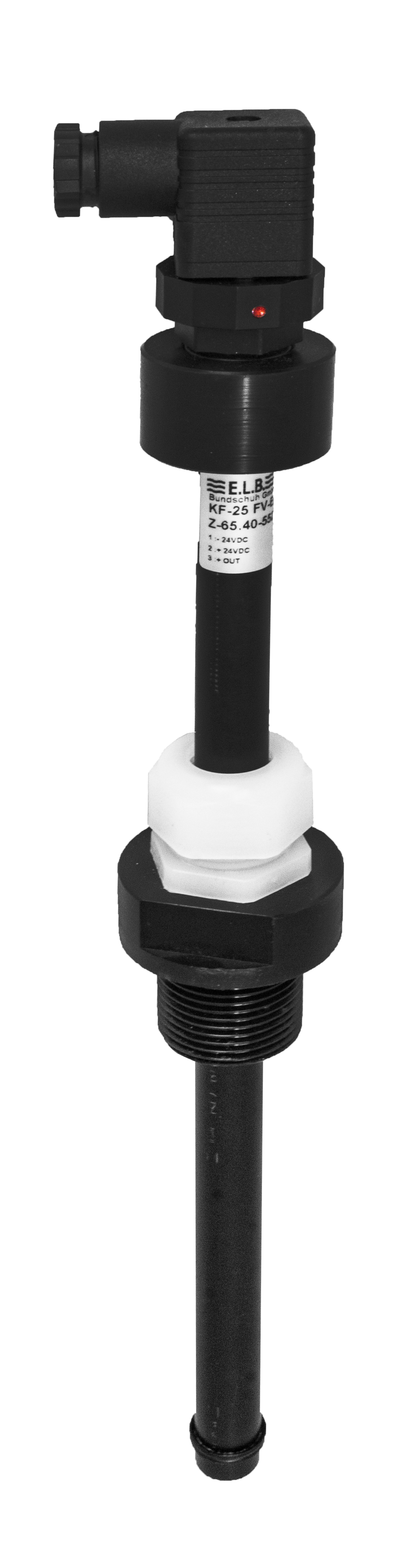

Description
The KF25 capacitive probes are used as overfill protection devices according to the German Water Resources Act (WHG) for water-polluting liquids. They are suitable for all non-flammable liquids.
Technical Data
Properties
- Power supply
- 24 VDC … 230 VAC; max. 2,5 W
- Switching voltage
- 24 VDC … 230 VAC; max. 2,5 W
- Switching current
- max.: 0,12 mA (kurzschlussfest), min.: 1 mA (CMOS Relais)
- Switching capacity
- max.: 2,5 W
- ltdata.Schaltpunkt
- ˂ 10 mm . . . ca. 30 mm
- Sensitivity
- ca. 1pF (Piko Farad), für Flüssigkeiten mit einem ε r ≥ 2 (Petroleum)
- ltdata.Betriebsart
- Ruhestromprinzip
KF25 application-specific configuration
KF25 - [ 1 ]
Further product information
The capacitive probes KF25.. and KL25.. are overfill and leak detection devices.

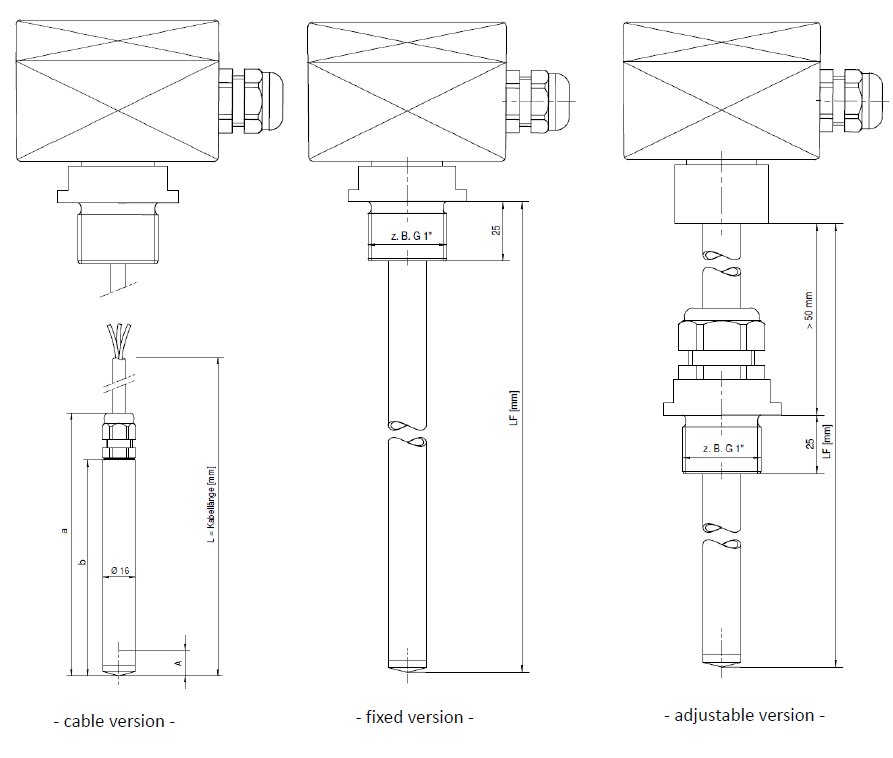

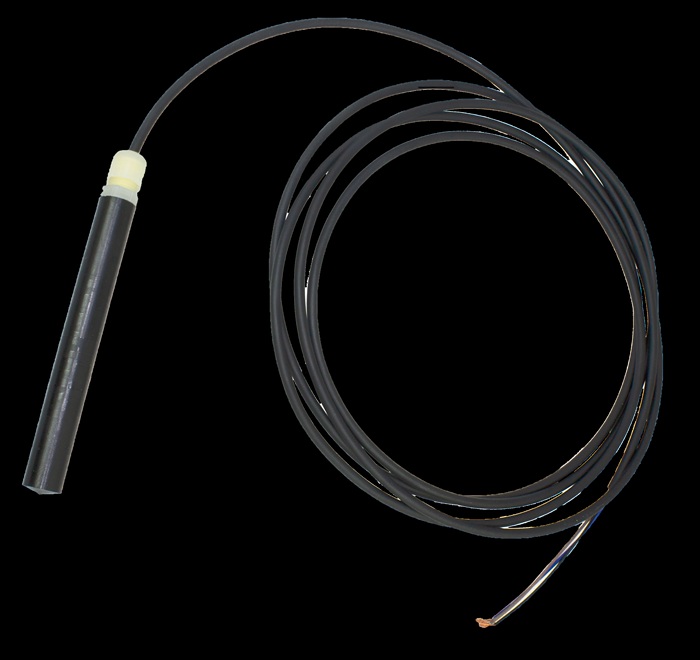

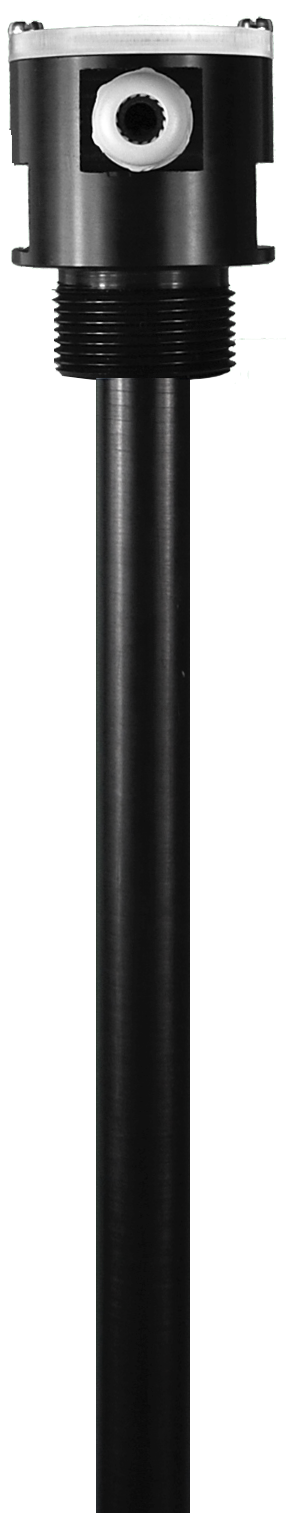

With these pendant and adjustable probes, the switching point is set by moving/fixing the cable or probe shaft.
The probes are approved by the DIBt (German Institute for Building Technology) for use with water-polluting liquids and can be used in accordance with the conditions stipulated in the German Ordinance on Facilities Handling Substances Hazardous to Water (VAwS) of the respective federal states.
- Cost-effective monitoring with maintenance-free operation
- DIBt approval according to the German Water Resources Act (WHG)
- High chemical resistance
- Installation possible in virtually any mounting position
- Direct connection 24–230 V AC/DC
- Electronics integrated into the probe
- Variably adjustable switching point
- NO output (fail-safe principle)
- For all liquid media, especially non-conductive and viscous media
