Description

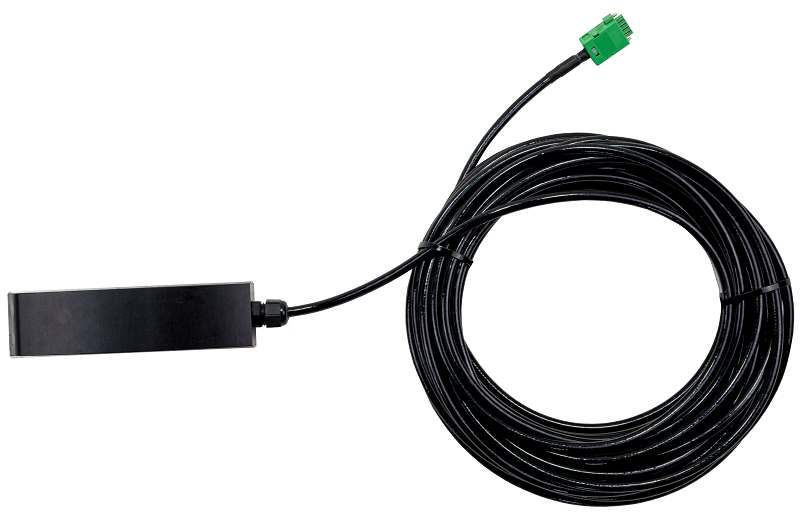

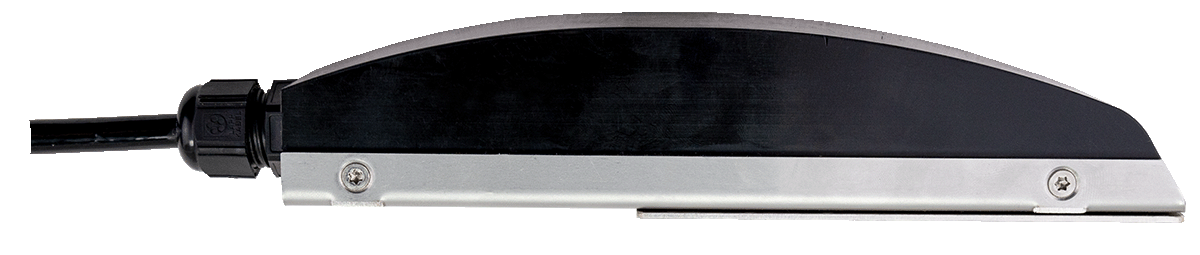

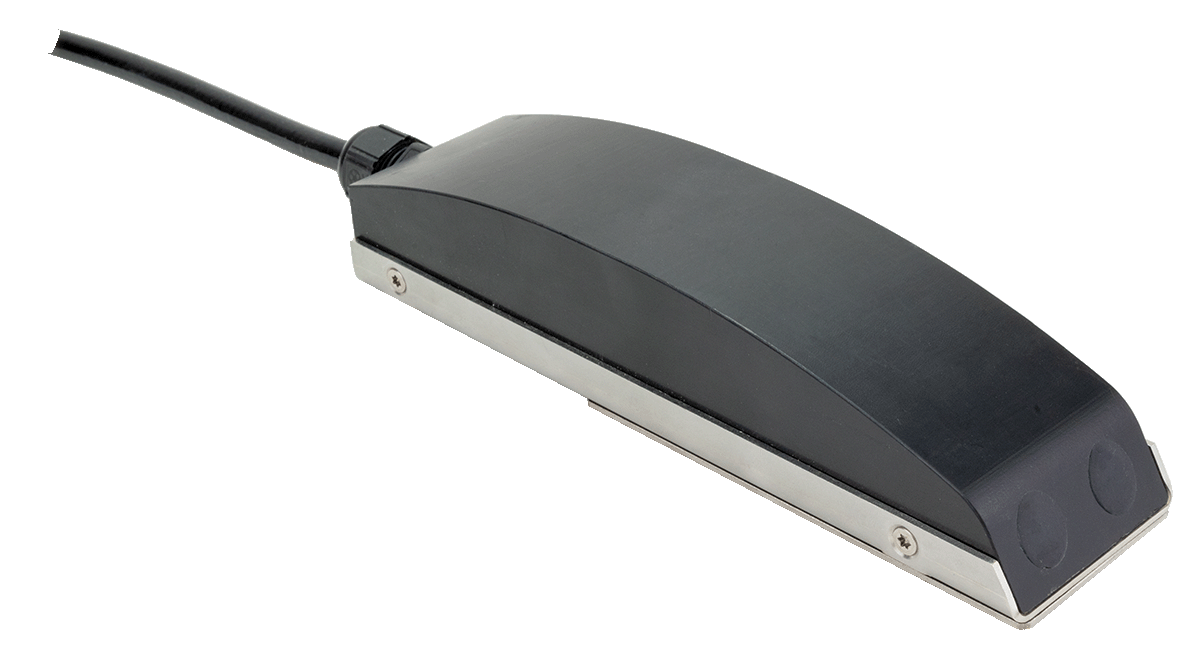

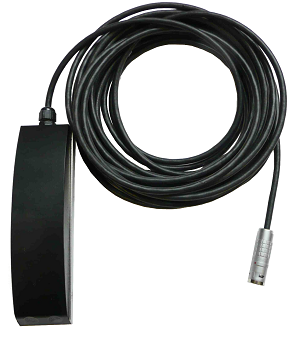

The DSM2420 sensor is a combined sensor for simultaneous measuring flow velocity and level in open or accessible closed channels of all types and shapes.
Technical Data
Properties

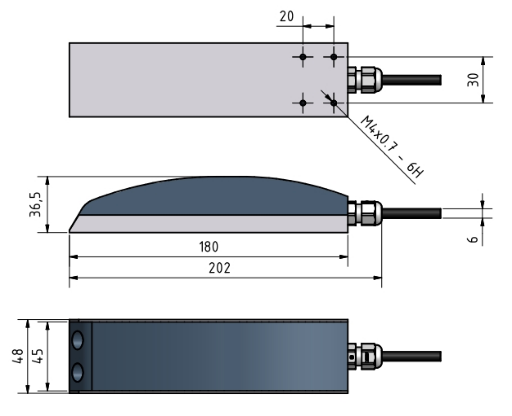

- Dimensions
- 180 x 48 x 36,5 mm ( L x B x H )
- Weight
- ca. 1,5 kg
- Protection class
- IP68
- Cable length (standard)
- 15 m
- Bending radius
- > 10 x D (Kabeldurchmesser 6,25mm) = > 62,5mm
- Temperature range
- 0°C ... 50°C

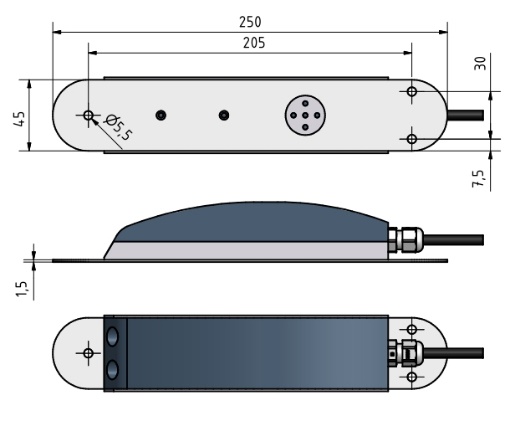

- Mounting shoe material
- V2A 1,5mm
Certificates
- EX / ATEX
- IBExU 04 ATEX 1256
Measuring principle
- Flow velocity: Ultrasonic Doppler
- Filling level: Differential pressure
Flow velocity
- Measuring range
- 0,01 - 4 m / s
- Measuring accuracy
- +/- 5 % vom Momentanwert im Kanal
- Temperature drift
- 0,1% / °C ( Meßspanne )
- Temperature drift
- 0,05% / °C ( Nullpunkt )
- Output signal
- 4 - 20 mA
Filling level
- Measuring ranges
- 0 –1 m ; 0 – 2 m ; 0 – 4 m
- Measuring accuracy
- < 0,2% v.E. Summe aus Nichtlinearität, Hysterese und Wiederholbarkeit
- Temperature drift
- 0,005% / °C v.E. Meßspanne
- Temperature drift
- 0,005% / °C v.E. Nullpunkt
- Material
- Al2O3 (96%) aktive Fläche
- Output signal
- 4 – 20 mA
- Zero point
- norm 4 mA ( +/- 3 % )
Further product information

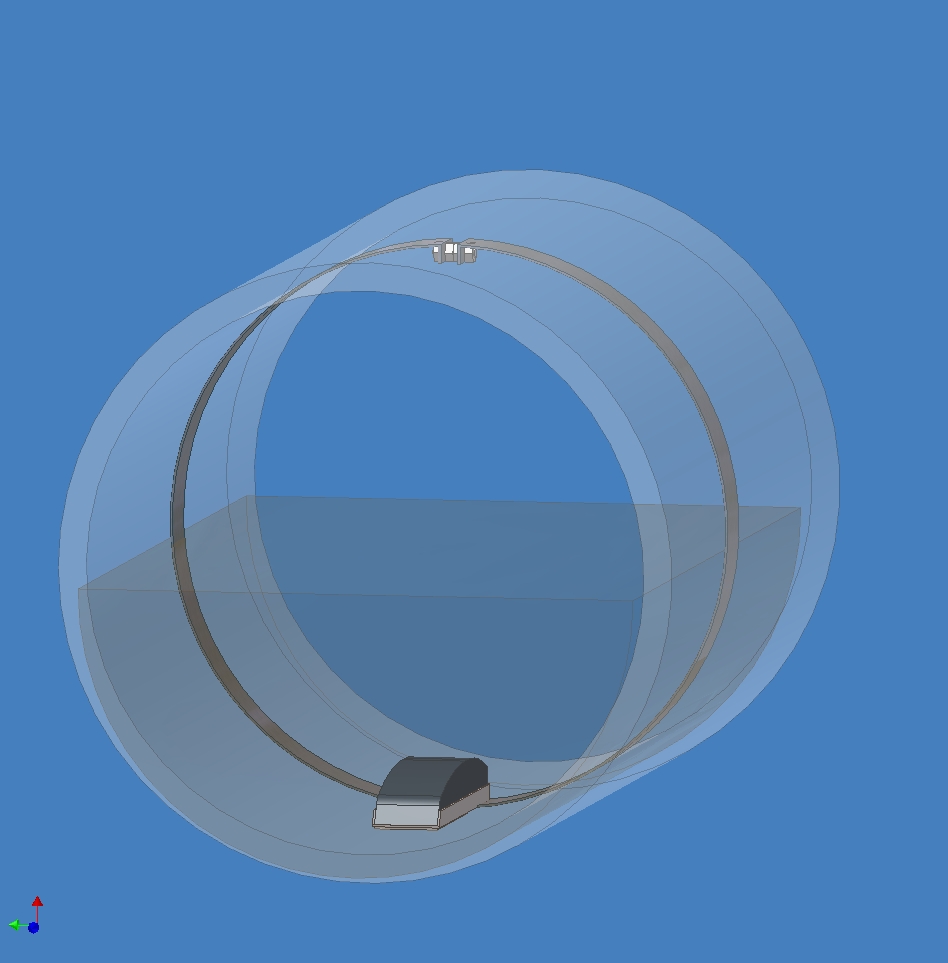

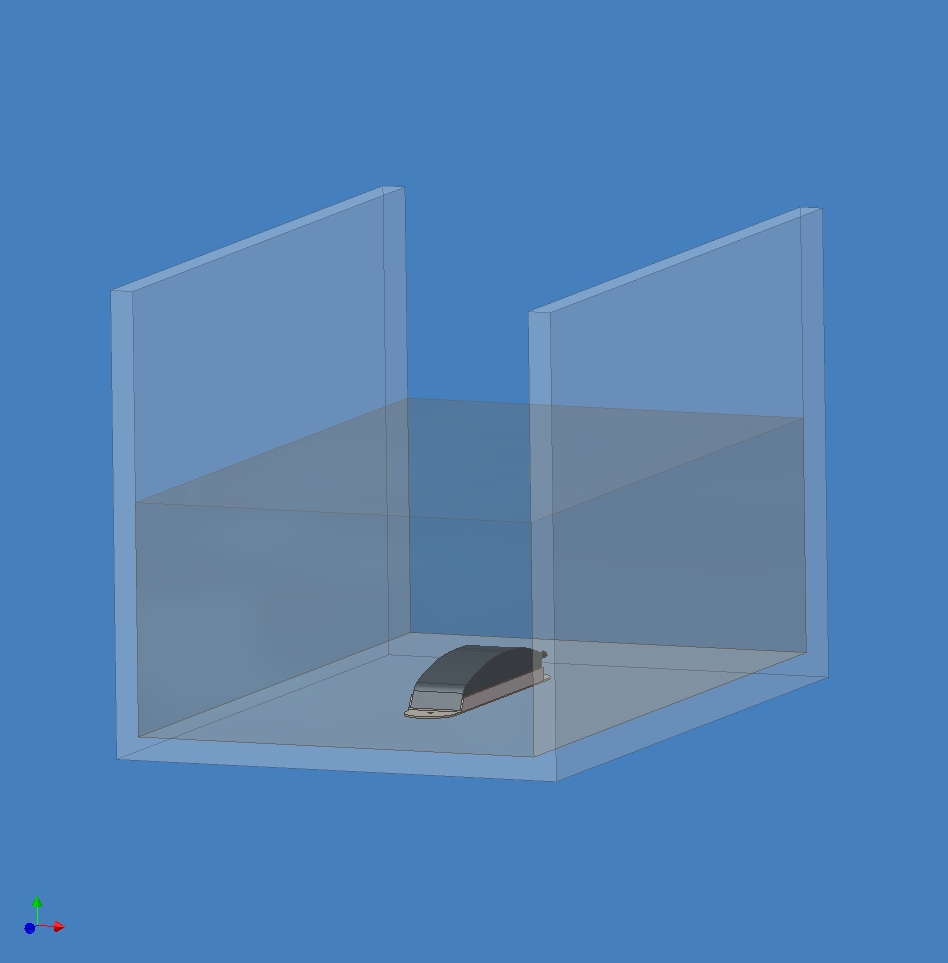

The sensor is made of special plastic and is therefore resistant to practically all aggressive media found in water and waste water. The sensor can be mounted on any type of sewer using the appropriate adaptable stainless steel mounting shoes. When also used to measure the filling level, floor mounting is required.
